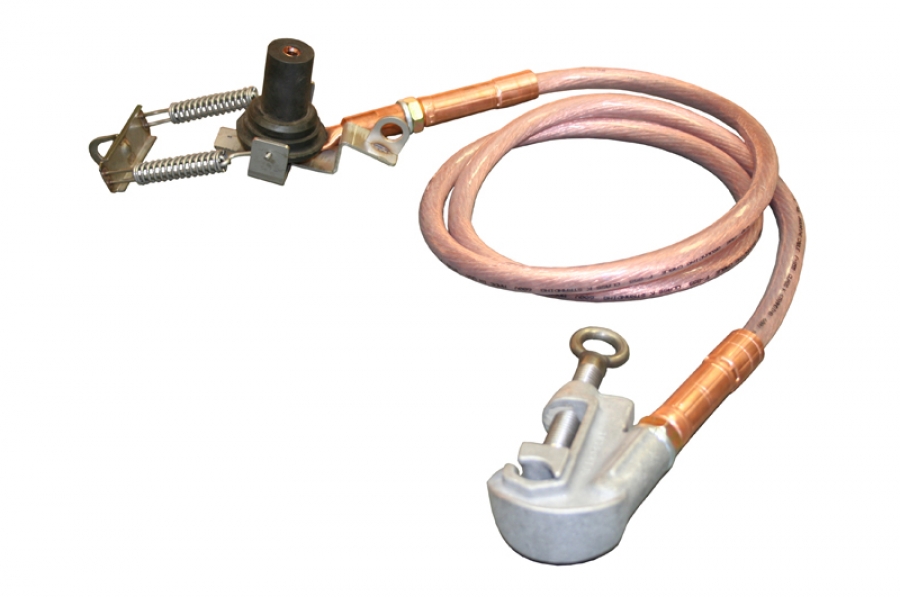

Utility Grounding Division
Download attachments:
Utility Grounding Division Catalogue
- Description
- C-Clamp
- Ball Socket Clamp
- Flat Clamps
- IWCB Clamp
- Duck Bill Clamp
- Angle Clamp
- Grounding Studs
- Breakaway
- DLJ Tool
C-Clamp
Grounding Clamps

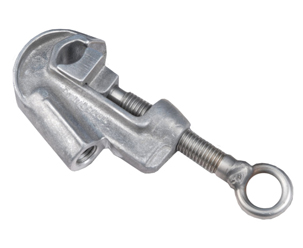

3/4″ AL-BR C-Clamp Threaded 15 Deg
- 400A continuous current rating
- Stainless steel 5/8-11 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6 or 115 Red Brass
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP75ACAT15 | 3/4″ AL C-Clamp (Smooth) Threaded 15 Deg | No | #6 Solid | 397.5 ACSR 18/1 | 0.125-.75 | 5H | 47 kA @15 Cycles X/R 30 | 1 |
| TP75BCBT15 | 3/4″ BR C-Clamp (Serrated) Threaded 15 Deg | Yes | #6 Solid | 397.5 ACSR 18/1 | 0.125-.75 | 5H | 47 kA @ 15 Cycles X/R 30 | 1 |

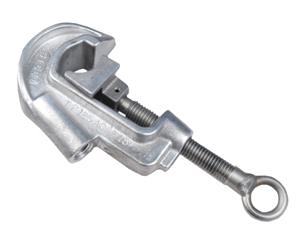

1 1/4″ AL C-Clamp Threaded 15 Deg
- 400A continuous current rating
- Stainless steel 5/8-11 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP125ACAT15 | 1-1/4″ AL C-Clamp (Smooth) Threaded 15 Deg | No | #6 Solid | 1.033.5 MCM ACSR 54/7 | 0.125-1.25 | 5H | 47 kA @15 Cycles X/R 30 | 1.5 |
| TP125ACBT15 | 1-1/4″ AL C-Clamp (Serrated) Threaded 15 Deg | Yes | #6 Solid | 1033.5 MCM ACSR 54/7 | 0.125-1.25 | 5H | 47 kA @15 Cycles X/R 30 | 1.5 |

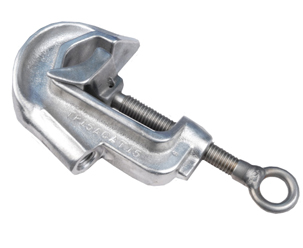

1 1/2″ AL C-Clamp Threaded 15 Deg
- 400A continuous current rating
- Stainless steel 5/8-11 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP15ACAT15 | 1-1/2″ AL C-Clamp (Smooth) Threaded 15 Deg | NO | #6 Solid | 1.5″ Dia Cable or Bus | 0.125-0.5 | 5H | 47 kA @ 15 Cycles X/R 30 | 1.5 |
| TP15ACBT15 | 1-1/2″ AL C-Clamp (Serrated) Threaded 15 Deg | Yes | #6 Solid | 1.5″ Dia Cable or Bus | 0.125-1.5 | 5H | 47 kA @ 15 Cycles X/R 30 | 1.5 |

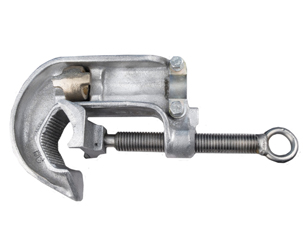

2″ AL C-Clamp Plug/Pin
- 400A continuous current rating
- Stainless steel 3/4-10 threaded eye screw tested at 400 lbs-in
- Aluminum casting 356-T6
- Strain relief comes standard
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP2ACAPSR | 2″ AL C-Clamp (Smooth) Plug/Pin Adapter with Strain Relief (SST ACME) | NO | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | Grade 5 | 43 kA @ 15 Cycles Symmetrical | 2.65 |
| TP2ACBPSR | 2″ AL C-Clamp (Serrated) Plug/Pin Adapter with Strain Relief (SST ACME) | YES | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | Grade 5 | 43 kA @ 15 Cycles Symmetrical | 2.65 |

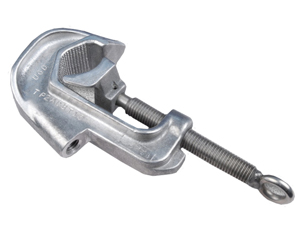

2″ AL C-Clamp Threaded 15 Deg
- 400A continuous current rating
- Stainless steel 3/4-10 threaded eye screw-tested at 400 lbs-in
- Aluminum casting 356-T6
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP2ACAT15 | 2″ AL C-Clamp (Smooth) Threaded 15 Deg | No | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | 5H | 47 kA @ 15 Cycles X/R 30 | 2.5 |
| TP2ACBT15 | 2″ AL C-Clamp (Serrated) Threaded 15 Deg | Yes | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | 5H | 47 kA @ 15 Cycles X/R 30 | 2.5 |

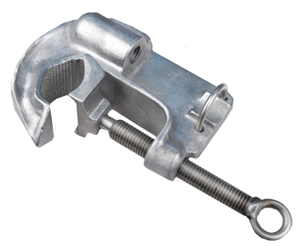

2” AL C-Clamp Treaded 5H
- 400A continuous current rating
- Stainless steel 3/4-10 threaded, eye screw – tested at 400 lbs-in
- Aluminum Casting 356-T6
- Strain relief comes standard
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP2ACATSR-5H | 2″ Al C-Clamp (Smooth) Threaded with Strain Relief, 5H (5/8″-11) |
No | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | 5H | 47 kA @ 15 Cycles X/R 30 | 3.15 |
| TP2ACBTSR-5H | 2″ AL C-Clamp (Serrated) Threaded with Strain Relief, 5H (5/8″-11) |
Yes | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | 5H | 47 kA @15 Cycles X/R 30 | 3.15 |

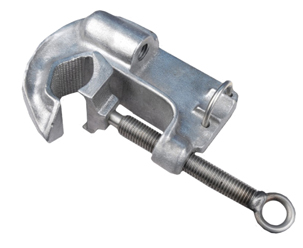

2″ AL C-Clamp Threaded 7H
- 400A continuous current rating
- Stainless steel 3/4-10 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
- Strain relief comes standard
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP2ACATSR-7H | 2″ AL C-Clamp (Smooth) Threaded with Strain Relief, 7H(3/4″-10) | No | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | 7H | 68 kA @15 Cycles X/R 30 | 3.15 |
| TP2ACBTSR-7H | 2″ AL C-Clamp (Serrated) Threaded with Strain Relief, 7H(3/4″-10) | Yes | #6 Solid | 2″ Dia Cable or Bus | 0.125-2.0 | 7H | 68 kA @15 Cycles X/R 30 | 3.15 |

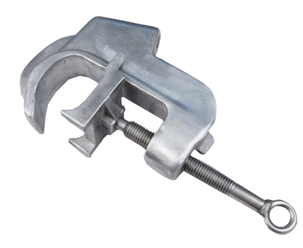

2.5″ AL C-Clamp Threaded 20 Deg
- 600A continuous current rating
- Stainless steel 3/4-10 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
| Part Number | Description | Serrated | Main Line | Conductor Cable or
Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP25ACAT20 | 2″ AL C-Clamp (Smooth) Threaded 20 Deg | No | #6 Solid | 2.5″ Dia Cable or Bus | 0.125-2.5 | 5H | 47 kA @ 15 Cycles X/R 30 | 3.5 |

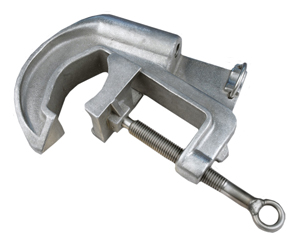

3.5″ AL C-Clamp Threaded 15 Deg
- 400A continuous current rating
- Stainless steel 3/4-10 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
- Strain relief comes standard
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP35ACAT15-SR | 1-35″ C Clamp (Smooth) Threaded 15 Deg Strain Relief | No | #4 ACSR | 3″ Dia Cable or Bus | 0.25-3.5 | 5H | 47 kA @ 15 Cycles X/R 30 | 4.75 |
| TP35ACBT15-SR | 1-35″ C-Clamp (Serrated) Threaded 15 Deg Strain Relief | Yes | #4 ACSR | 3″ Dia Cable or Bus | 0.25-3.5 | 5H | 47 kA @ 15 Cycles X/R 30 | 4.75 |

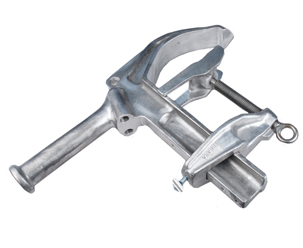

6″ AL C-Clamps Round Bus
- 800A continuous current rating w/ dual grounds
- Stainless steel 3/4-10 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
- 1 1/2″ x 6″ long solid grounding stud
- Lifting ring
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Rang |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP6ARA2T20-S | 6″ Aluminum Round Bar Clamp (Smooth) (2 x Threaded) 20 Degrees w 1 1/2″ Grounding Stud |
No | 3″ | 5″ | 3.5″-6″ | 6H | 63 kA @15 Cycles X/R 30 | 4 |
| TP6ARB2T20-S | 6″ Aluminum Round Bar Clamp (Serrated) (2 x Threaded) 20 Degrees w 1 1/2″ Grounding Stud |
Yes | 3″ | 5″ | 3.5″-6″ | 6H | 63 kA @ 15 Cycles X/R 30 | 4 |
| TP6ARA2T20-S-ET | 6″ AL Round Bar, Square, and “T” Clamp (2 x Threaded) 20 Degrees w 1 1/2″ Grounding Stud |
No | 3″ | 5″ | 3.5″-6″ | 6H | 63 kA @ 15 Cycles X/R 30 | 4 |
Ball Socket Clamp
Grounding Clamps

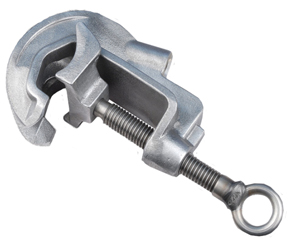

1″ Ball Socket Clamp Threaded 15 Deg
- 400A continuous current rating
- Stainless steel 5/8-11 threaded eye screw – tested at 400 lbs-in
- Alluminum casting 356-T6

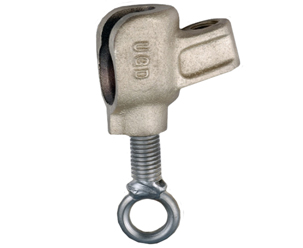

1″ Ball Socket Clamp
- 400A continuous current rating
- Stainless steel 5/8-11 threaded eye screw – tested at 400 lbs-in
- #878 Si Bronze
| Part Number | Description | Material | Ball Size | Stud Size | Max Current Fault Rating | Lbs | |
| BSC1A | 1″ Ball Socket Clamp | Bronze | 1″ | 5/8″ | 5H | 47 kA @15 Cycles X/R 30 | 1.88 |
| TP15ABSC1T15 | AL 1 1/2″ C-Clamp 1″ Ball Socket Threaded 15 Deg | Aluminum | 1″ | 5/8″ | 5H | 47 kA @ 15 Cycles X/R 30 | 1.63 |
Flat Clamps
Grounding Clamps

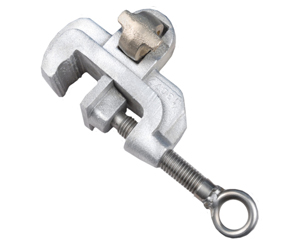

1.5″ Flat Clamps
- 400A continuous current rating
- Stainless steel 5/8-11 threaded eye screw – tested at 400 lbs-in
- Available in both aluminum 356-T6 and red brass 115
| Part Number | Description | Serrated | Material | Flat Bus Bar Range | Max Current Fault Rating | Lbs | |
| TP15AFBP | Travis Pattern 1.5″ Almuminum Flat Bar Clamp (Serrated) (Plug Adapter) |
Yes | Aluminum | 0-1.5″ | 5 | 43 kA @ 15 Cycles Symmetrical | 1.63 |
| TP15BFBP | Travis Pattern 1.5″ Bronze Flat Bar Clamp (Serrated) (Plug Adapter) |
Yes | Bronze | 0-1.5″ | 5 | 43 kA @ 15 Cycles Symmetrical | 4.00 |
| TP15AFBT15 | Travis Pattern 1.5″ Aluminum Flat Bar Clamp (Serrated) (Threaded) 15 Degree |
Yes | Aluminum | 0-1.5″ | 5 | 43 kA @ 15 Cycles Symmetrical | 2.13 |
| TP15BFBT15 | Travis Pattern 1.5″ Bronze Flat Bar Clamp (Serrated) (Threaded) 15 Degree |
Yes | Bronze | 0-1.5″ | 5H | 47 kA @ 15 Cycles X/R 30 | 5.13 |
IWCB Clamp
Grounding Clamps

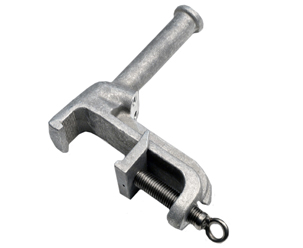

4″-6″ IWCB Double Threaded 15 Deg
- 800A continuous current rating
- Stainless steel 1″-8 threaded eye screw – tested at 400 lbs-in
| Part Number | Description | Serrated | Main Line | Max Current Fault Rating | Lbs | ||
| Min | Max | ||||||
| TPIWCB4X6BT15GS | 4″ to 6″ AL IWCB (Serrated) Double Threaded to (1) 1.5″ x 6″ Stud |
Yes | 4″ | 6″ | 7H | 68 kA @ 15 Cycles X/R 30 | 5.0 |
Duck Bill Clamp
Grounding Clamps

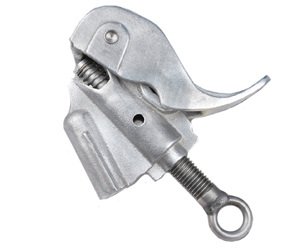

Duck Bill Clamp Threaded 15 Deg
- 400A continuous current rating
- Stainless steel 3/4-10 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
| Part Number | Description | Serrated | Main Line | Conductor Cable
or Bus Dia. Range |
Max Current Fault Rating | Lbs | ||
| Min | Max | |||||||
| TP125ADAT15 | 1-1/4″ AL Duckbill (Smooth) Threaded 15 Deg | No | #6 Solid | 1033.5 MCM ACSR 54/7 |
0.125-1.25 | 5H | 47 kA @ 15 Cycles X/R 30 | 2 |
| TP125ADBT15 | 1-1/4″ AL Duckbill (Serrated) Threaded 15 Deg | Yes | #6 Solid | 1033.5 MCM ACSR 54/7 |
0.125-1.25 | 5H | 47 kA @ 15 Cycles X/R 30 | 2 |
| TP15ADAT15 | 1-1/2″ AL Duckbill (Smooth) Threaded 15 Deg | No | #6 Solid | 1.5″ Dia Cable or Bus |
0.125-1.5 | 5H | 47 kA @ 15 Cycles X/R 30 | 2.25 |
| TP15ADBT15 | 1-1/2″ AL Duckbill (Serrated) Threaded 15 Deg | Yes | #6 Solid | 1.5″ Dia Cable or Bus |
0.125-1.5 | 5H | 47 kA @ 15 Cycles X/R 30 | 2.25 |
Angle Clamp
Grounding Clamps
Angle Clamp
- 400A continuous current ratng
- Stainless steel 3/4-10 threaded eye screw – tested at 400 lbs-in
- Aluminum casting 356-T6
- Strain relief comes standard
| Part Number | Description | Conductor Bus Range | Max Current Fault Rating | Lbs | |

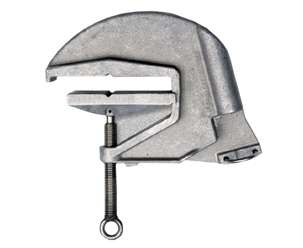

| TP6X6ACAT15O-SR | AL 6X6 Aluminum C-Clamp 5/8-11 15 Deg Thrd Overbite Strain Relief (Lip on Body) |
2″-6″ Angle | 5H | 47 kA @15 Cycles X/R 30 | 3.5 |

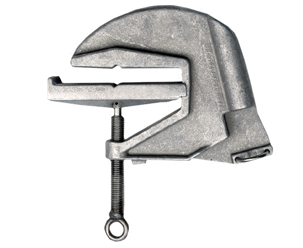

| TP6X6ACAT15U-SR | AL 6X6 Aluminum C-Clamp 5/8-11 15 Deg Thrd Underbite Strain Relief (Lip on Jaw) |
2″-6″ Angle | 5H | 47 kA @15 Cycles X/R 30 | 3.5 |
Grounding Studs
Grounding Studs

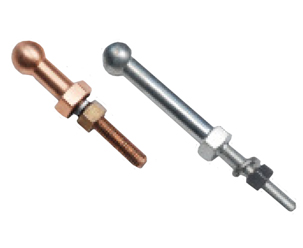

Grounding Ball Studs
- 400A continuous current rating
- Copper alloy C-110
- For electric tin plating use suffix (ETP)
| Part Number | Description | Single Configurations
Max Current Fault Rating |
Double Configuration
Max Current Fault Rating |
D1 | D2 | D3 | D4 | Thread |
| BS11500M | Ball Stud, 1 IN Ball, 1 IN Shank, 1/2 IN-13 Male Thread |
47 kA @ 15 Cycles X/R 30 | 63 kA @ 15 Cycles X/R 30 | 1″ | 1″ | 1″ | 2.25″ | 1/2″-13 |
| BS13500M | Ball Stud, 1 IN Ball, 3 IN Shank 1/2-13 Male Thread |
47 kA @ 15 Cycles X/R 30 | 63 kA @ 15 Cycles X/R 30 | 1″ | 1″ | 3″ | 2.25″ | 1/2″-13 |
| BS15500M | Ball Stud, 1 IN Ball, 5 IN Shank, 1/2 IN-13 Male Thread |
47 kA @ 15 Cycles X/R 30 | 63 kA @ 15 Cycles X/R 30 | 1″ | 1″ | 5 1/2″ | 2.25″ | 1/2″-13 |

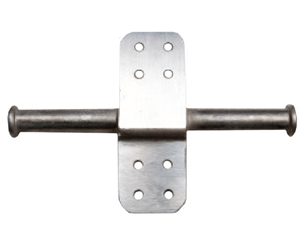

Special Double Stud
- 800A continuous current rating
- 1-1/2″ x 6″ long ground studs
- Aluminum casting 356-T6

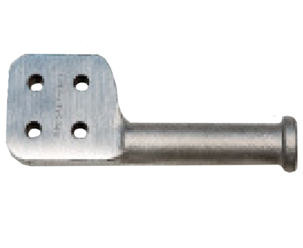

Special Single Stud
- 800A continuous current rating
- 1-1/2″ x 6″ long ground studs
- Aluminum casting 356-T6
| Part Number | Description | Max Current | Lbs |
| Extension Pad | |||
| 4X4-EXT-2GS | Aluminum (2) 4X4 Pads Extension w/(2) 1 1/2″ x 6″ Dia Grounding Studs | 68 kA @ 15 Cycles X/R 30 | 7 |
| Pad to Stud | |||
| 4X4-1GSF | Aluminum 4X4 Pad to 1 1/2″ x 6″ Dia Flag Style Ground Stud | 68 kA @ 15 Cycles X/R 30 | 3 |
Cluster Bar
Cluster Bar
The Travis UGD Temporary Pole Mount Cluster Bar is designed to be permanently installed on the power pole and allows definite pole penetration. The rack is easy to use when conduit or other obstruction are on the pole. This rack provides a location for multiple grounding clamps to join, as well as equal potential zone for the worker on the pole.

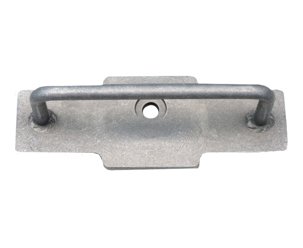

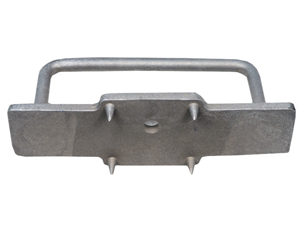

Temporary Pole Mount Cluster Bar
- 400A continuous current rating
- Aluminum casting 356-T6
| Part Number | Description | Max Current Fault Rating | Lbs | |
| CPB-DE | Aluminum grounding junction rack | Class 5 | 43 kA @ 15 Cycles Symmetrical | 2 |
Breakaway
Breakaway
The Breakaway Connector (BAC) creates an equal potential bond for electrical workers operating out of a man lift or any machine that doesn’t have an insulation boom. In the event an electrical worker becomes incapacitated, the hydraulic lift can be lowered manually performing an aerial rescue. In these cases, the BAC will break away, freeing the boom from the conductor in which it was attached.

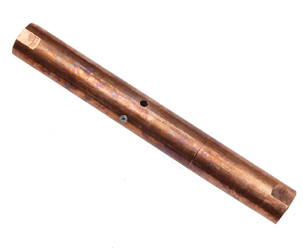

BAC (Breakaway Connector)
- 400A continuous current rating
- Copper C-110
| Part Number | Description | Material | Tap Size | Max Current Fault Rating | Lbs | |
| BAC625(300) | Cable Breakaway Connector 5/8-11 Thread (250-300 lbs) (Bonding Cable Only) (Not to be Used for Grounding) |
C-110 | 5/8-11 | Class 1 | 10 kA @ 10 Cycles | 1.5 |
| BAC625(600) | Cable Breakaway Connector 5/8-11 Thread (550-600 lbs) (Bonding Cable Only) (Not to be used for Grounding) |
C-110 | 5/8-11 | Class 1 | 10 kA @ 10 Cycles | 1.5 |

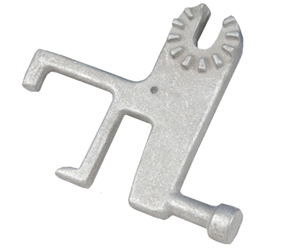

DLJ Tool
DLJ Tool
DLJ Tool Features
- Assist tying in connectors
- Securing fuse barrels
- Easy ring attachment
- Raising wires or cables

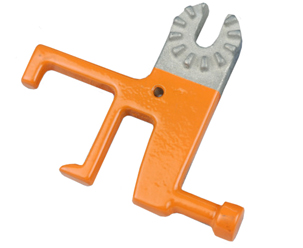

- Available with high visibility powder coating
- Made from light weight heat treated aluminum
