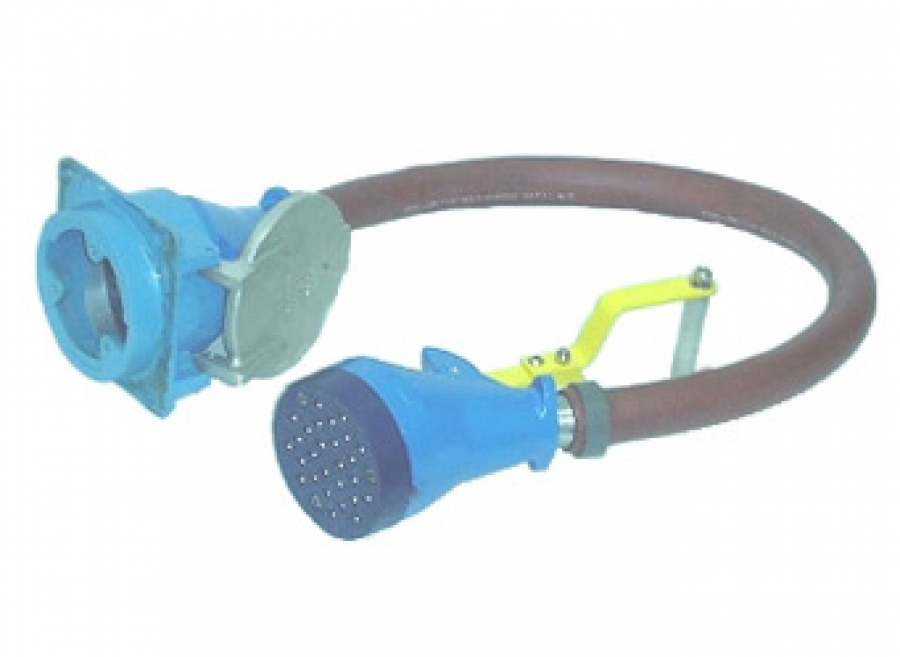

When developing the Railroad Coupler, Patton & Cooke contacted railroad industry professionals to determine which features were important. This information and Patton & Cooke’s manufacturing expertise were combined to produce a superior product. The Patton & Cooke Railroad coupler is compatible with industry standard equipment and it incorporates a unique safe disconnect feature that the industry demands.
Railroad Couplers
Download attachments:
Railroad Couplers PDF

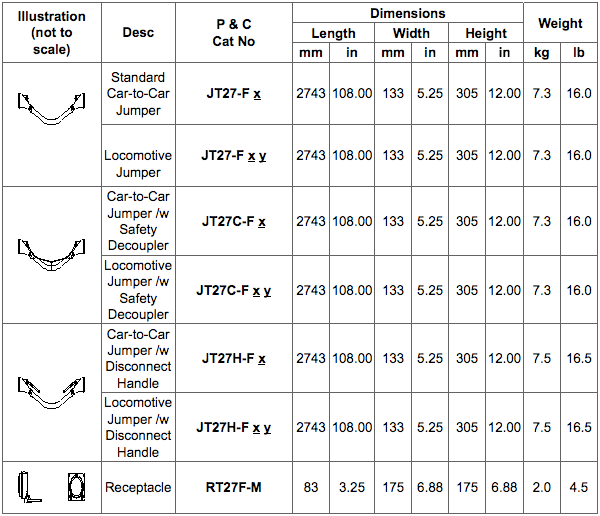

Specs
Railroad Couplers
SELECTION REMINDERS:
- Lengths shown are for the standard 108″ jumper.
- All couplers are epoxy coated blue for extra protection. For other colors, contact factory.
ORDERING PROCEDURE:
1. Car-to-Car Jumpers:
- Determine style of jumper required
- Select catalogue number
- Determine jumper length, in inches
- Substitute the length for x to complete the catalog number.
2. Locomotive Jumpers:
- Determine style of jumper required
- Select catalogue number
- Determine jumper length, in inches
- Substitute the length for x in the catalog number.
- Determine the wiring circuitry required then contact factory to complete the catalogue number.
For more information on Railroad Couplers, please contact:
Patton & Cooke Co.
