Insulated End Caps

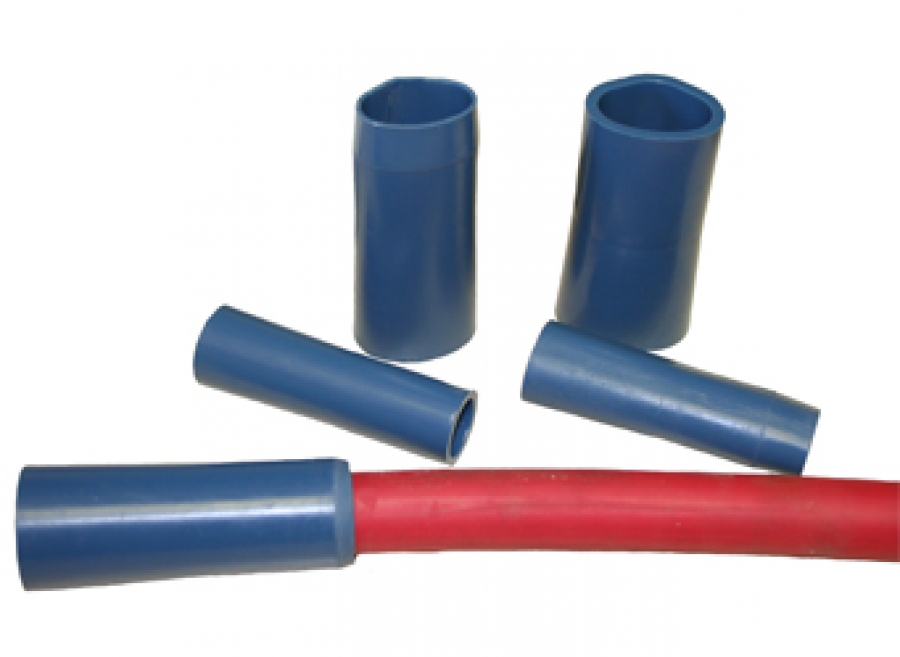

Insulated end caps are used for capping off live conductors. Cast from Patton & Cooke’s exclusive thermal setting resin, insulated end caps are rigid cable handling tools with superior insulating properties.

Specs

Insulated End Caps

Voltage Class (kv)	Cable Type	Conductor Size	P&C Cat. No.	Dimensions
Voltage Class (kv)	Cable Type	Conductor Size	P&C Cat. No.	a		b		c
13	Compact Sector	#3/0 AWG	CAP-015	102 mm	4.00 in	25 mm	0.97 mm	29 mm	1.16 in
		300 MCM	CAP-014	110 mm	4.31 in	32 mm	1.25 in	36 mm	1.41 in
		400 MCM	CAP-006	110 mm	4.31 in	44 mm	1.72 in	49 mm	1.94 in
		500 MCM	CAP-013	110 mm	4.31 in	35 mm	1.38 in	39 mm	1.54 in
		600 MCM	CAP-005	110 mm	4.31 in	47 mm	1.84 in	53 mm	2.10 in
	Round	#2 AWG	CAP-001	102 mm	4.00 in	25 mm	0.97 in	29 mm	1.16 in
15	Compact Sector	#2/0 AWG	CAP-TH3	110 mm	4.31 in	35 mm	1.25 in	40 mm	1.41 in
		350 MCM	CAP-012	110 mm	4.31 in	38 mm	1.50 in	42 mm	1.66 in
		500 MCM	CAP-TH4	110 mm	4.31 in	49 mm	1.84 in	53 mm	2.10 in
	Round	#2/0 AWG	CAP-TH1	110 mm	4.31 in	30 mm	1.17 in	35 mm	1.34 in
		350 MCM	CAP-010	110 mm	4.31 in	32 mm	1.25 in	36 mm	1.41 in
		500 MCM	CAP-011	110 mm	4.31 in	35 mm	1.38 in	39 mm	1.54 in
		500 MCM	CAP-TH2	110 mm	4.31 in	49 mm	1.57 in	53 mm	1.73 in
25	Compact Sector	350 MCM	CAP-005	110 mm	4.31 in	47 mm	1.84 in	53 mm	2.10 in
25	Compact Sector	500 MCM	CAP-007	110 mm	4.31 in	52 mm	2.06 in	58 mm	2.28 in
