Pascor offers versatility and reliability in its entire line of group operated swithces. Ideal for either substation or transmission applications, Pascor switches are engineered to the highest standards to meet ANSI requirements. Pascor customizes controls on each switch to suit the application.

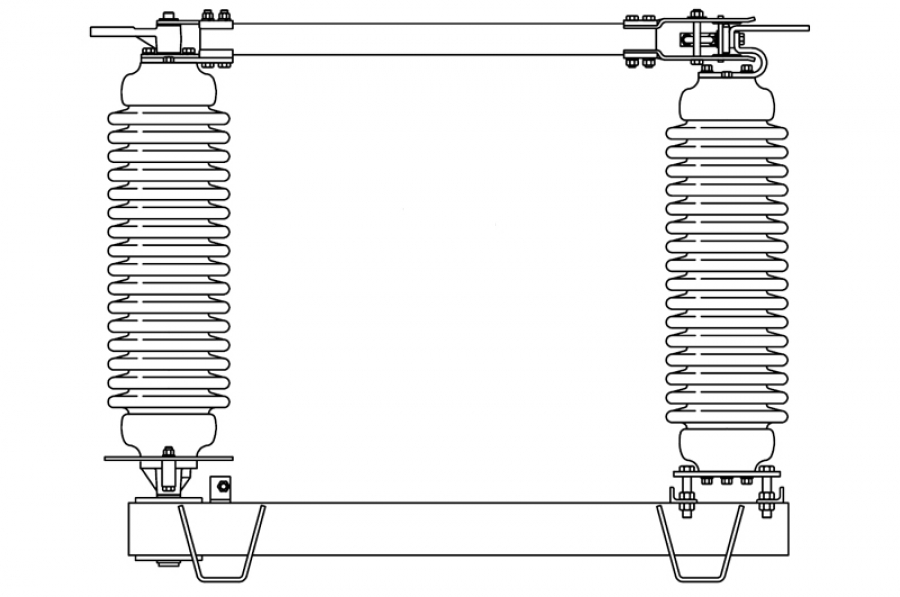

Side Break
Download attachments:
Side Break 1200/1600 Amp
1200/1600 Amp SBP
Side Break Parallel 1200/1600 Amp
- Manufactured in copper
- Requires minimum overhead clearance
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom |
STD
INSUL |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | |||||
| A | B | C | D | E | F* | |||||||
| 15 | 110 | 1200/1600 | 61/70 | TR205 | 3 | 10 | 22 ¼ | 15 | 17 | 22 ¾ | 22 5/16 | 705 |
| 23 | 150 | 1200/1600 | 61/70 | TR208 | 3 | 14 | 26 ¼ | 18 | 19 ¾ | 25 ¾ | 25 5/16 | 774 |
| 34.5 | 200 | 1200/1600 | 61/70 | TR210 | 3 | 18 | 30 ¼ | 24 | 25 ½ | 31 ½ | 31 5/16 | 852 |
| 46 | 250 | 1200/1600 | 61/70 | TR214 | 3 | 22 | 34 ¼ | 30 | 31 | 37 ¾ | 37 5/16 | 996 |
| 69 | 350 | 1200/1600 | 61/70 | TR216 | 3 | 30 | 42 ¼ | 42 | 42 ½ | 49 ¾ | 49 5/16 | 1212 |
*Weights are in lbs., and include 3 phases, insulators and controls
Application: Substation & Transmission
- Horizontal upright
- Vertical
- Underhung
Standard Features:
- 1/2″ stainless steel arcing horns
- Leaf type contact fingers with stainless steel backup springs
- Silver to silver exposed contacts
- Rigid tubular blades
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings
Operator Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single vacuum bottle interrupters
- Ground switches
