Motor Operator

Pascor offers versatility and reliability in its entire line of group operated switches. Ideal for either substation or transmission applications, Pascor switches are engineered to the highest standards to meet ANSI requirements. Pascor customizes controls on each switch to suit the application.

MGO - Motor Operator

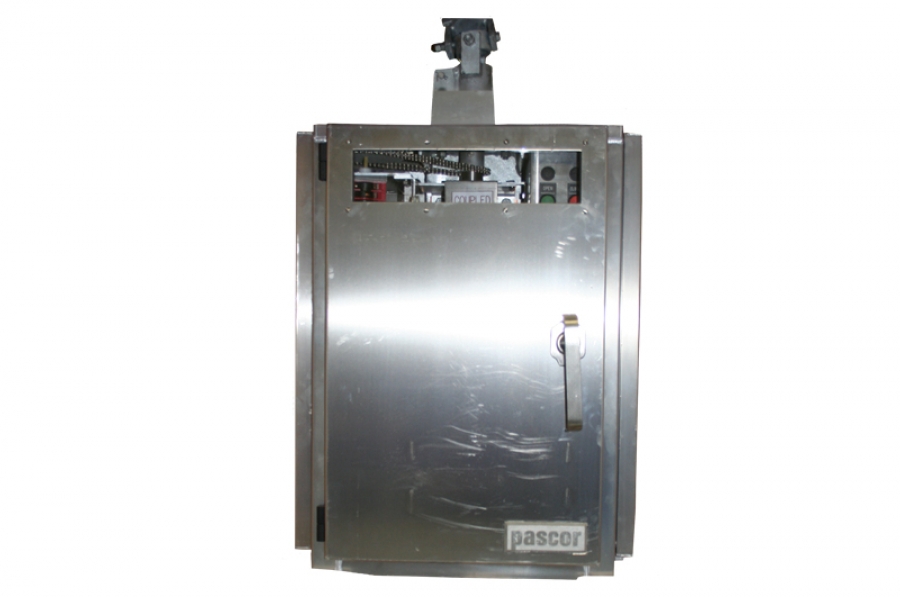

MGO – Motor Operator

Internal decoupler
Asymmetric coupling – prevents re-coupling 180° out of position
View window in front door – allows positive reading of decoupler position
Large housing – 32″H 23″W 18″L – ample room from incoming wires
Hinged, removable doors on the three sides – maintenance free
Adjustable external mechanical stops – swing handle operation kept within the same arc as when the motor is operated
Permanent magnet motor – allows dynamic braking which add to the ase of operation
“U” joint output – allows for connected torsional
8 stage auxiliary switch for customer use
Automatic lockout of motor circuit when hand crank is inserted – safety feature
230/115 Vac thermostatically controlled 150 watt heater
Fuse protection on motor/control and heater circuits

Electrical Parameters

Table 1 Motor Current Ratings
Motor	Current (Amps)
Motor	Inrush Locked Rotors	Running Full Load
24 V.D.C.	122	20
48 V.D.C	59	10
125 V.D.C	21	4

Table 2 Operating Characteristics
Motor	Operating Time (Sec)*	Output Torque in Lbs (x 1000)
DC	4	10
	6	15
	8	20
	10	30

*Time is for 180 degree rotation of output shaft

Optional Features:

Stop push-button operation
Local/remote selector switch indicating lights
Operations counter
Circuit breakers
Auxiliary switch below decoupler

Differentiating Features:

Internal decoupler allows auxiliary switch to be above decoupler
The auxiliary switch always reflects position of switch and is not subject to icing
A single padlock secures the decoupler and housing
A second, optional auxiliary switch is available to follow the motor, if desired
A slip ring mechanism from “kick” as energy from the vertical pipe wrap up is released during recoupling
