Linear

Linear

Download attachments:
Junction Bars PDF

Category: Junction Bars
  • Description
  • Specs
  • 200/600 Amp

All in-line junctions can be equipped with universal mounting brackets that can provide mounting angles from 0 to 90 degrees, “U” straps or special mounting arrangements required for installation in sectionalizing cubicles.

Parking stands are available in a variety of configurations for use in standard or custom applications. Patton & Cooke mounting brackets are manufactured of stainless steel or where applicable, powder coated mild steel. Parking stands are exclusively made of stainless steel.Parking stands are available in a variety of configurations for use in standard or custom applications. Patton & Cooke mounting brackets are manufactured of stainless steel or where applicable, powder coated mild steel. Parking stands are exclusively made of stainless steel.

Specs

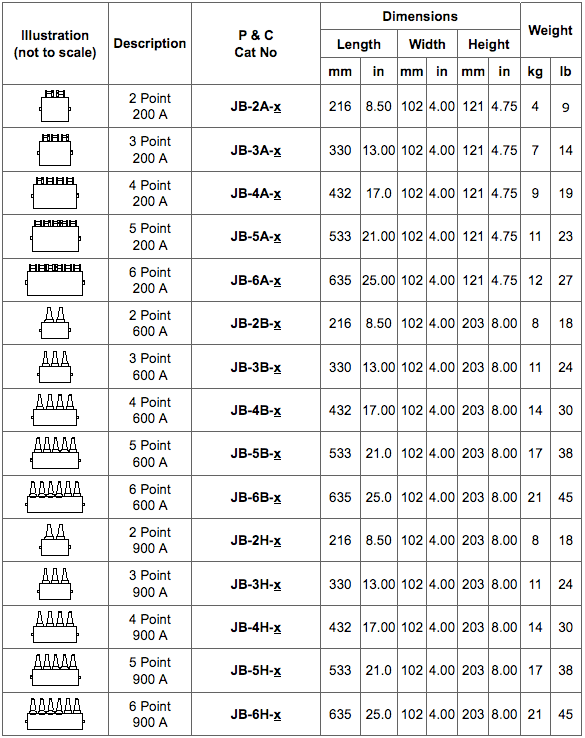

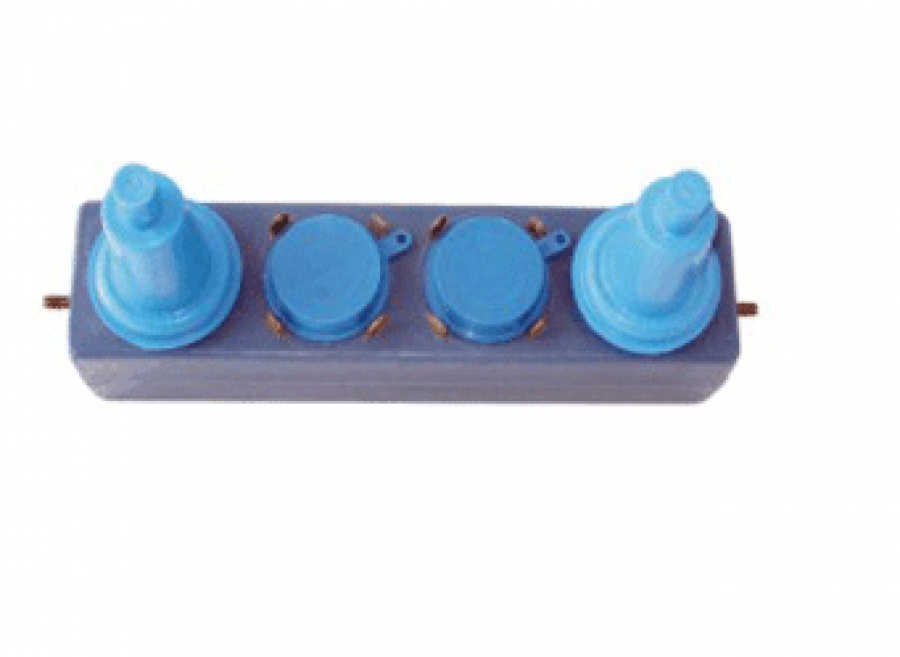

Linear (Inline) Junction Bars

SELECTION REMINDERS:

  1. Standard ratings for all junction bars for separable connectors: for separable connectors: Voltage: to 35 kV, Impulse Voltage: to 150 kV BIL, Corona Extinction: to 26 kV
  2. All junction bars are standard equipped with protective covers and mounting brackets. Parking stands are optional.
  3. Many combinations of 200, 600 or 900Amp, junction bars are available.

ORDERING PROCEDURE:

  1. Determine the following:
    • Maximum voltage, kV.
    • Current Rating, Amp.
    • Number of positions required for installation.
  2. Select catalogue number of junction bar
  3. Provide the maximum voltage, kV and substitute its corresponding extinction value for x in the catalogue number.
  4. Specify if mounting brackets or parking stands are required.

Example:
25 kV (corona extinction = 19 kV), 200 Amp, 4 point
Catalogue Number  JB-4A-19

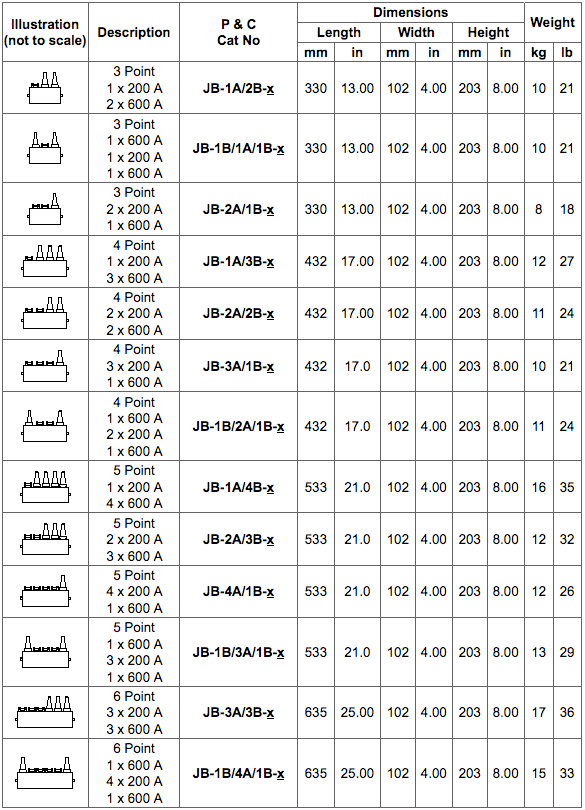

200/600 Amp

Linear (Inline) Junction Bars

SELECTION REMINDERS:

  • Standard ratings for all junction bars for separable connectors: for separable connectors: Voltage: to 35 kV, Impulse Voltage: to 150 kV BIL, Corona Extinction: to 26 kV
  • All junction bars are standard equipped with protective covers and mounting brackets. Parking stands are optional.
  • Many combinations of 200, 600 or 900Amp, junction bars are available.

ORDERING PROCEDURE:

    Determine the following:
  • Maximum voltage, kV.
  • Current Rating, Amp.
  • Number of positions required for installation.
  • Select catalogue number of junction bar
  • Provide the maximum voltage, kV and substitute its corresponding extinction value for x in the catalog number.
  • Specify if mounting brackets or parking stands are required.

Example:
25 kV (corona extinction = 19 kV), 200 Amp, 4 point
Catalogue Number  JB-4A-19
