Standard Patton & Cooke high voltage couplers come equipped with protective covers and hoods to prevent damage and contamination. Enhanced covers and hoods (Live End Covers and Shorting Caps) are available to provide additional functionality. It is possible to upgrade your coupler’s standard cover or hood for an enhanced version. Contact factory for more information.

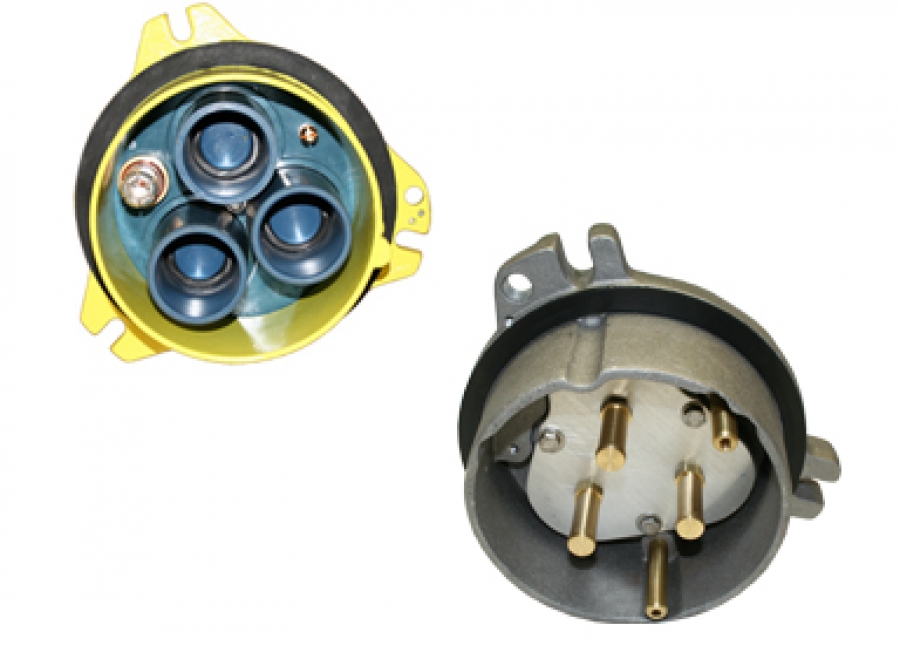

Enhanced Safety Covers
Live End Covers
Enhanced Safety Covers

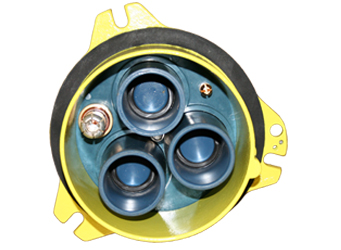

Live end covers were designed for use with splitter boxes equipped with ground wire monitor protection devices.
Live end covers incorporate protective covers, insulated phase tubes, and end of line devices which enable safe energization of a splitter box even if one or more circuits have been disconnected.
Live end covers are available for 5, 8, and 15 kV product applications.
| Current Rating (A) | Male / Female | For Use With | Patton & Cooke Catalogue No. | ||
| 250 | M | PK8S-Mxy | PK8F-Mx | C80C1000x Series | 11E-073 |
| F | RK8S-Fxy | RK8F-Fx | C80C2000x Series | 11E-073A | |
| 400 | M | PL5S-Mxy | PL5F-Mx | 11D-110 | |
| C80D1000x Series | C80D3008 | ||||
| 400 | F | RL5S-Fxy | RL5F-Fx | 11D-110A | |
| C80D2000x Series | C80D3009 | ||||
For information on Live End Covers, please contact:
Patton & Cooke Co.
Shorting Caps
Shorting Caps

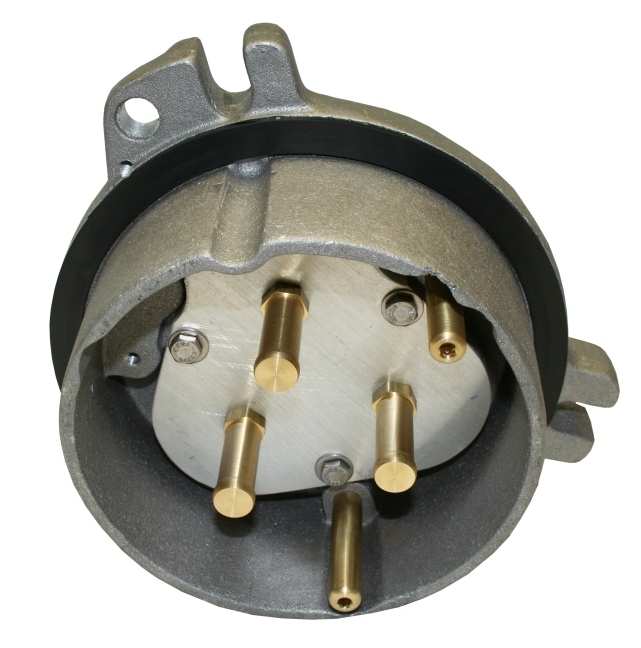

Long cable runs and where large conductors are used will maintain a charge even after the power to the circuit has been cut. Human contact with a phase conductor in such incidents may result in injury to personnel. Patton & Cooke shorting caps, in conjunction with operating procedures, provide a means to safely discharge capacitive load from a cable.
For information on Shorting Caps, please contact:
Patton & Cooke Co.
