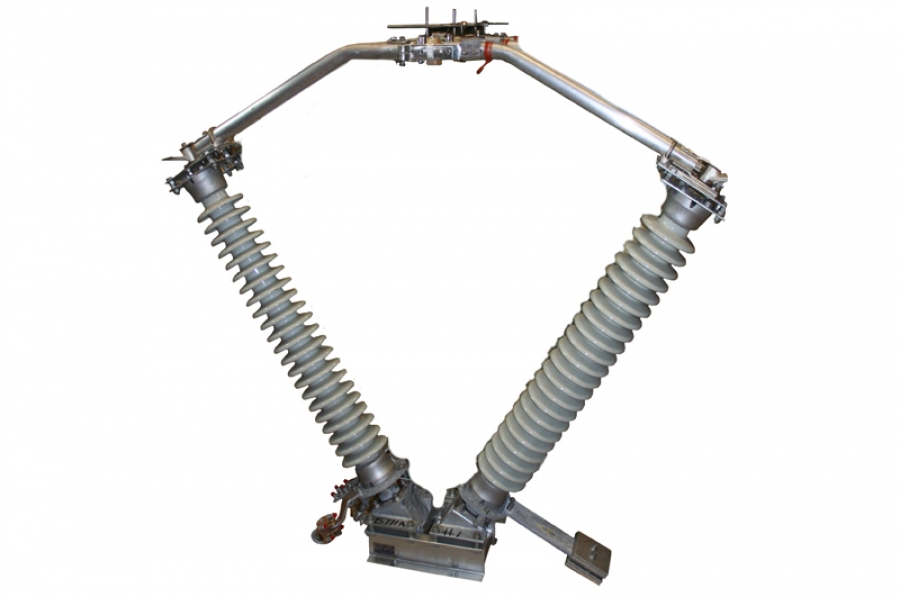

Center Break Slant

Center Break Slant

Download attachments:
Center Break Slant 1200/1600 Amp
Center Break Slant 2000 Amp
Center Break Slant 3000 Amp

Category:

Pascor offers versatility and reliability in its entire linge of group operated switches. Ideal for either substation or transmission applications, Pascor switches are engineered to the highest standards to meet ANSI requirements. Pascor customizes controls on each switch to suit the application.

1200/1600 Amp CBS

Center Break Slant 1200/1600 Amp

  • Manufactured in either aluminum or copper
  • Requires minimum overhead clearance
  • Slanted insulators allow for minimum base mounting
kV

(nom)

 kV

BIL

 Amps

Continuous

 kA

Mom

 STD

INSUl

 INSUL

BC (IN)

 INSUL

HGT (IN)

 Dimensions are in Inches
A B C D E*
15 110 1200/1600 61/70 TR205 3 10 21 ¾ 36 ⅜ 28 ⅛ 20 615
23 150 1200/1600 61/70 TR208 3 14 25 ¼ 41 32 ⅛ 22 ¼ 675
34.5 200 1200/1600 61/70 TR210 3 18 28 ¾ 45 ⅝ 36 ⅛ 24 ¾ 741
46 250 1200/1600 61/70 TR214 3 22 32 ¼ 50 ¼ 40 ⅛ 27 873
69 350 1200/1600 61/70 TR216 3 30 40 ¼ 53 ¼ 53 ⅞ 33 1005
115 550 1200/1600 61/70 TR286 3 45 53 ¾ 71 ¾ 70 ½ 42 ½ 1353
138 650 1200/1600 61/70 TR288 3 54 61 ¾ 82 ½ 79 ½ 47 ¾ 1497
161 750 1200/1600 61/70 TR291 3 62 71 ¼ 96 ½ 93 ½ 58 ¼ 1887
230 900 1200/1600 61/70 TR304 3 80 86 ¾ 118 ¼ 111 ½ 71 ½ 2115

*Weights are in lbs., and include 3 phases, insulators and controls

Application: Substation & Transmission

  • Horizontal upright
  • Vertical
  • Phase over phase
  • Phase opposite phase

Standard Features:

  • 1/2″ stainless steel arcing horns
  • Brazed silver to silver contacts
  • Rigid tubular blades
  • Stainless steel live parts hardware
  • Stainless steel ball bearings 115kV and above
  • Stainless steel shaft in bronze sleeve bearing 69kV and below
  • Galvanized steel base

Operator Option:

  • Swing handle
  • Worm gear
  • Motor operator

Accessories:

  • Whip type horns
  • Single vacuum bottle interrupters
  • Ground switches
  • Counterweight as required

2000 Amp CBS

Center Break Slant 2000 Amp

  • Manufactured in either aluminum or copper
  • Requires minimum overhead clearance
  • Slanted insulators allow for minimum base mounting
kV

(nom)

 kV

BIL

 Amps

Continuous

 kA

Mom

 STD

INSUL

 INSUL

BC (IN)

 INSUL

HGT (IN)

 Dimensions are in Inches
A B C D E*
15 110 2000 100 TR205 3 10 24 ⅝ 36 ⅜ 35 23 ¾ 1480
23 150 2000 100 TR208 3 14 28 41 39 25 ¾ 1540
34.5 200 2000 100 TR210 3 18 31 ½ 45 ⅝ 43 28 ¼ 1606
46 250 2000 100 TR214 3 22 35 50 ¼ 47 30 ½ 1738
69 350 2000 100 TR216 3 30 41 ⅞ 59 ½ 55 35 1870
115 550 2000 100 TR286 5 45 55 ¼ 72 ⅞ 75 ⅝ 47 2218
138 650 2000 100 TR288 5 54 63 85 7/16 84 ⅝ 52 ⅛ 2362
161 750 2000 100 TR291 5 62 72 ¾ 98 ⅜ 98 13/16 60 ¾ 2752
230 900 2000 100 TR304 5 80 88 ⅜ 119 ⅜ 116 ¾ 71 ¼ 2980

 *Weights are in lbs., and include 3 phases, insulators and controls

Application: Substation & Transmission

  • Horizontal upgright
  • Vertical
  • Underhung
  • Phase over phase
  • Phase opposite phase

Standard Features:

  • 1/2″ stainless steel arcing horns
  • Brazed silver to silver contacts
  • Rigid tubular blades
  • Stainless steel live parts hardware
  • Stainless steel shaft in bronze sleeve bearing 69kV and below
  • Galvanized steel base

Opearator Option:

  • Swing handle
  • Worm gear
  • Motor operator

Accessories:

  • Whip type horns
  • Single vacuum bottle interrupters
  • Ground switches
  • Counterweight as required

3000 Amp CBS

Center Break Slant 3000 Amp

  • Manufactured in either aluminum or copper
  • Requires minimum overhead clearance
  • Slanted insulators allow for minimum base mounting
kV

(nom)

 kV

BIL

 Amps

Continuous

 kA

Mom

 STD

INSUL

 INSUL

BC (IN)

 INSUL

HGT (IN)

 Dimensions are in Inches
A B C D E*
15 110 3000 120 TR205 3 10 25 ½ 36 15/16  40 ⅜ 24 ⅝ 1545
23 150 3000 120 TR208 3 14 29 41 ½ 44 ⅜ 26 ⅞ 1605
34.5 200 3000 120 TR210 3 18 32 ½ 46 ⅛ 48 ⅜ 29 ⅛ 1671
46 250 3000 120 TR214 3 22 36 50 ¾ 52 ⅜ 31 ½ 1803
69 350 3000 120 TR216 3 30 42 ¾ 60 ⅛ 60 ⅜ 36 1935
115 550 3000 120 TR286 5 45 56 74 ¾ 80 ⅞ 46 2283
138 650 3000 120 TR288 5 54 64 85 ⅞ 90 51 ¼ 2427
161 750 3000 120 TR291 5 62 73 ¼ 99 7/16 104 59 ⅜ 2817
230 900 3000 120 TR304 5 80 89 121 1/16 122 72 ½ 3045

*Weights are in lbs., and include 3 phases, insulators and controls

Application: Substation & Transmission

  • Horizontal upright
  • Vertical
  • Underhung
  • Phase over phase
  • Phase opposite phase

Standard Features:

  • 1/2″ stainless steel arcing horns
  • Brazed silver to silver contacts
  • Rigid tubular blades
  • Stainless steel live parts hardware
  • Stainless steel ball bearings 115 kV and above
  • Stainless steel shaft in bronze sleeve bearing 69 kV and below
  • Galvanized steel base

Operator Option:

  • Swing handle
  • Worm gear
  • Motor operator

Accessories

  • Whip type horns
  • Single vacuum bottle interrupters
  • Ground switches
  • Counterweight as required
