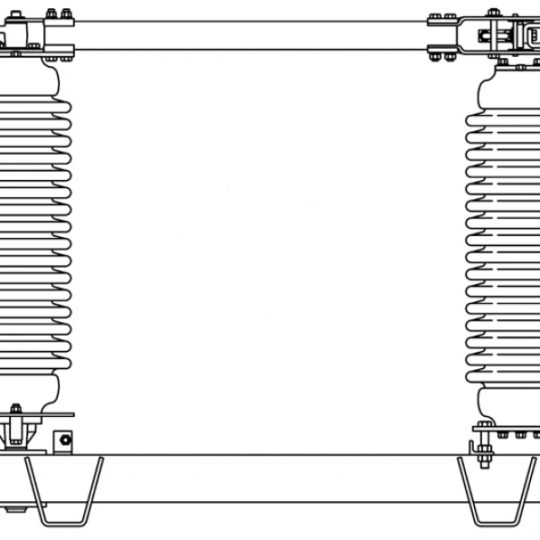

Pascor offers versatility and reliability in its entire line of group operated switches. Ideal for either substation or transmission applications, Pascor switches are engineered to the highest standards to meet ANSI requirements. Pascor customizes controls on each switch to suit the application.

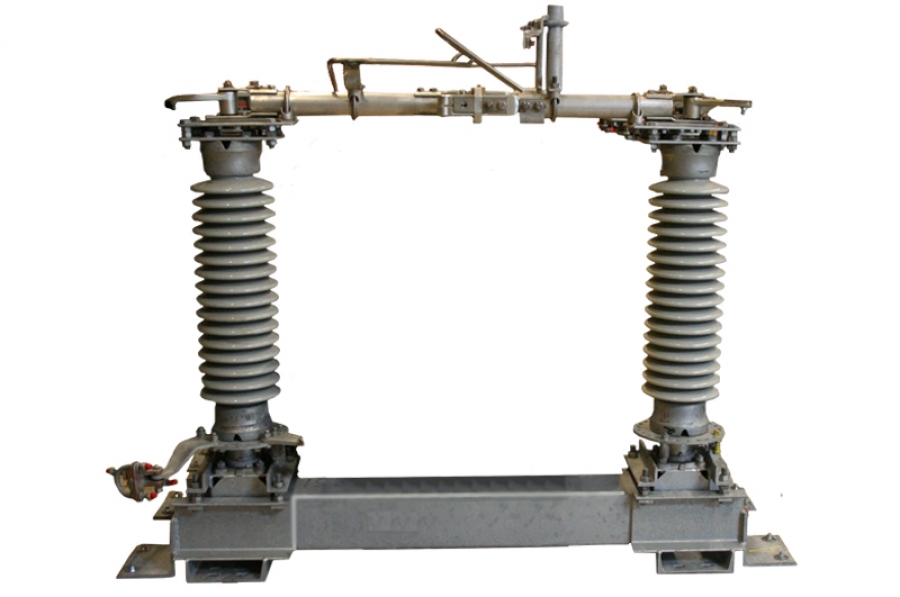

Center Break Parallel
Download attachments:
Center Break 1200/1600 Amp
Center Break 2000 Amp
Center Break 3000/4000 Amp
1200/1600 Amp CBP
Center Break Parallel 1200/1600 Amp CBP
- Manufactured in either aluminum or copper
- Requires minimum overhead clearance
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom |
STD
INSUL |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | ||||
| A | B | C | D | E* | |||||||
| 15 | 110 | 1200/1600 | 61/70 | TR205 | 3 | 10 | 22 ¼ | 24 | 20 | 30 | 741 |
| 23 | 150 | 1200/1600 | 61/70 | TR208 | 3 | 14 | 26 ¼ | 24 | 20 | 33 | 801 |
| 34.5 | 200 | 1200/1600 | 61/70 | TR210 | 3 | 18 | 30 ¼ | 24 | 20 | 34 | 867 |
| 46 | 250 | 1200/1600 | 61/70 | TR214 | 3 | 22 | 34 ¼ | 30 | 21 | 36 | 999 |
| 69 | 350 | 1200/1600 | 61/70 | TR216 | 3 | 30 | 42 ¼ | 42 | 31 | 52 | 1131 |
| 115 | 550 | 1200/1600 | 61/70 | TR286 | 3 | 45 | 61 | 60 | 40 | 70 | 1479 |
| 138 | 650 | 1200/1600 | 61/70 | TR288 | 3 | 54 | 70 | 72 | 46 ½ | 82 | 1623 |
| 161 | 750 | 1200/1600 | 61/70 | TR291 | 3 | 62 | 82 ½ | 84 | 50 ½ | 94 | 2013 |
| 230 | 900 | 1200/1600 | 61/70 | TR304 | 3 | 80 | 100 ½ | 96 | 56 ½ | 108 | 2241 |
*Weights are in lbs., and include 3 phases, insulators, and controls
Application: Substation & Transmission
- Horizontal uprights
- Vertical
- Underhung
Standard Features:
- 1/2″ stainless steel arcing horns
- Leaf type contact fingers with stainless steel backup springs
- Silver to silver exposed contacts
- Rigid tubular blades
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings
Opeartor Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single vacuum bottle interrupters
- Ground switches
2000 Amp CBP
Center Break Parallel 2000 Amp CBP
- Manufactured in either aluminum or copper
- Requires minimum overhead clearance
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom |
STD
INSUL |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | ||||
| A | B | C | D | E* | |||||||
| 15 | 110 | 2000 | 100 | TR205 | 3 | 10 | 25 ½ | 24 | 17 | 30 | 900 |
| 23 | 150 | 2000 | 100 | TR208 | 3 | 14 | 29 ½ | 24 | 17 | 33 | 960 |
| 34.5 | 200 | 2000 | 100 | TR210 | 3 | 18 | 33 ½ | 24 | 17 | 34 | 1026 |
| 46 | 250 | 2000 | 100 | TR214 | 3 | 22 | 37 ½ | 30 | 21 | 36 | 1158 |
| 69 | 350 | 2000 | 100 | TR216 | 3 | 30 | 45 ½ | 42 | 31 ½ | 52 | 1290 |
| 115 | 550 | 2000 | 100 | TR286 | 3 | 45 | 6 2¾ | 60 | 41 | 70 | 1638 |
| 138 | 650 | 2000 | 100 | TR288 | 3 | 54 | 71 ¾ | 72 | 47 | 82 | 1782 |
| 161 | 750 | 2000 | 100 | TR291 | 3 | 62 | 84 ¼ | 84 | 51 | 94 | 2172 |
| 230 | 900 | 2000 | 100 | TR304 | 3 | 80 | 102 ¼ | 96 | 57 | 108 | 2400 |
*Weights are in lbs., and include 3 phases, insulators and controls
Application: Substation & Transmission
- Horizontal upright
- Vertical
- Underhung
Standard Features:
- 1/2″ stainless steel arcing horns
- Leaf type contact fingers with stainless steel backup springs
- Silver to silver exposed contacts
- Rigid tubular blades
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings
Operator Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single vacuum bottle interrupters
- Ground switches
3000/4000 Amp CBP
Center Break Parallel 3000/4000 Amp CBP
- Manufactured in either aluminum or copper
- Requires minimum overhead clearance
| kV
(nom) |
kV
BIL |
Amps
Continuous |
kA
Mom |
STD
INSUL |
INSUL
BC (IN) |
INSUL
HGT (IN) |
Dimensions are in Inches | ||||
| A | B | C | D | E* | |||||||
| 69 | 350 | 3000/4000 | 120 | TR216 | 3 | 30 | 47 ½ | 42 | 29 | 48 | 1590 |
| 115 | 550 | 3000/4000 | 120 | TR286 | 5 | 45 | 64 ½ | 60 | 39 ½ | 70 | 1938 |
| 138 | 650 | 3000/4000 | 120 | TR288 | 5 | 54 | 73 ½ | 72 | 45 | 82 | 2082 |
| 161 | 750 | 3000/4000 | 120 | TR291 | 5 | 62 | 86 | 84 | 51 | 94 | 2472 |
| 230 | 900 | 3000/4000 | 120 | TR304 | 5 | 80 | 96 | 104 | 57 | 108 | 2700 |
*Weights are in lbs,. and included 3 phases, insulators and controls
Application: Substation & Transmission
- Horizontal upright
- Vertical
- Underhung
Standard Features:
- 1/2″ stainless steel arcing horns
- Leaf type contact fingers with stainless steel backup springs
- Silver to silver exposed contacts
- Rigid tubular blades
- Stainless steel live parts hardware
- Galvanized steel square tube base
- Stainless steel ball bearings
Operator Option:
- Swing handle
- Worm gear
- Motor operator
Accessories:
- Whip type horns
- Single vacuum bottle interrupters
- Ground switches
- Counterweight as required
