1100 V Cable Couplers

Download attachments:
IMG 1100V Data Sheet
IMG 1100V Leverlock Data Sheet

Category: IMG Series

Patton & Cooke is pleased to offer our CSA approved IMG Series of medium voltage cable couplers. These couplers are designed and manufactured for use in various (OP/UG), tunneling, power generation, sea port/shore, and general industry operations to distribute power to mobile/portable electric equipment. Numerous improvements have been integrated into the couplers design in order to further increase safety, durability, and reliability in real world applications.

Available in 170 Amp and 250 Amp models and cast Aluminum or Bronze.

170 & 250 Amp

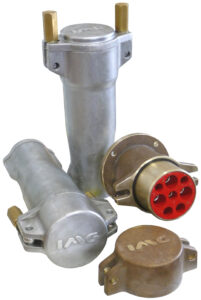

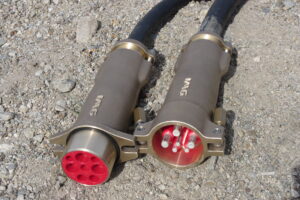

1100 Volt IMG Series Cable Couplers

PRODUCT FEATURES & BENEFITS:

CSA C22.2 No. 298-16 Safety Approved
Exclusive “Wedge Pin” type method of wire termination ensures a secure contact and connection between conductors and pin/socket contacts.
Stainless steel spring band on female sockets ensures a secure and lasting connection between male and female contacts.
One piece insulator is made from rigid, thermoset material, ensuring durability, heat resistance, and high dielectric strength.
Cable entrance assembly is designed to seal and clamp cable to coupler to ensure IP-67 rating.

PRODUCT OPTIONS
